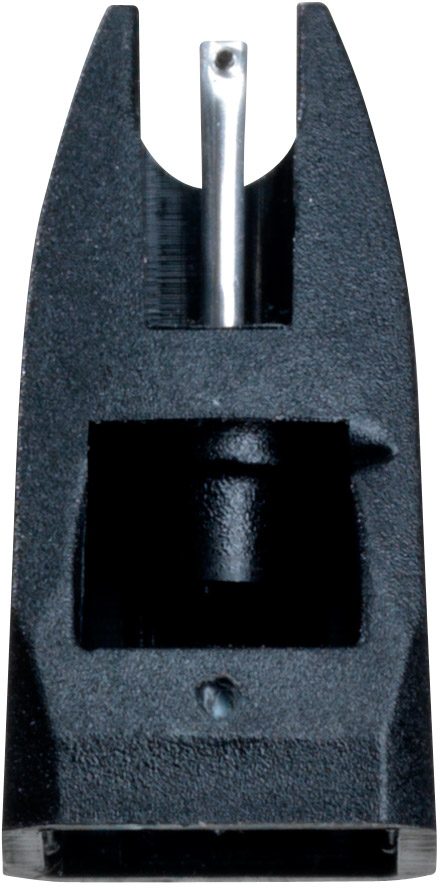

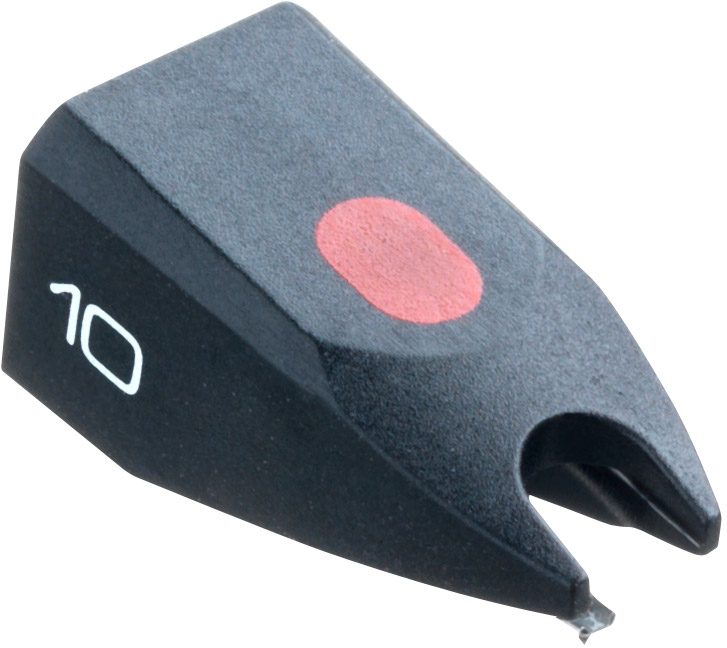

ORTOFON Hi-Fi 10 Replacement Stylus

Recommended for following cartridges | Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12, Concorde STD, Dual ULM 65E, Dual ULM 66E

Frequency range | 20-24,000 Hz
Frequency response | 20-20,000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force | 70 µm
Compliance, dynamic, lateral | 25 µm/mN
Stylus type | Elliptical
Stylus tip radius | r/R 8/18 µm
Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) | 1.5 g (15 mN)
Tracking angle | 20°
Stylus colour | Black
